Hlau Coil
Khoom Description

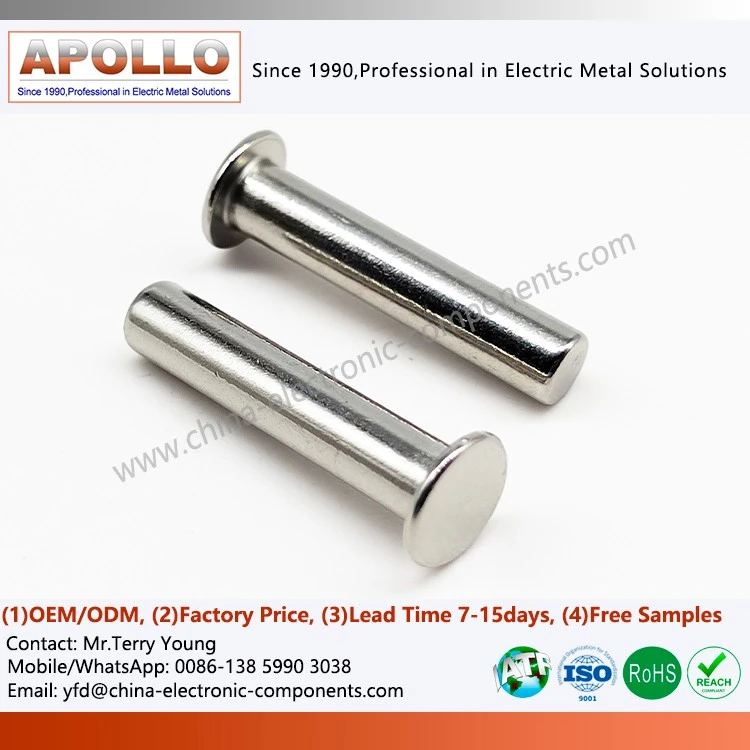

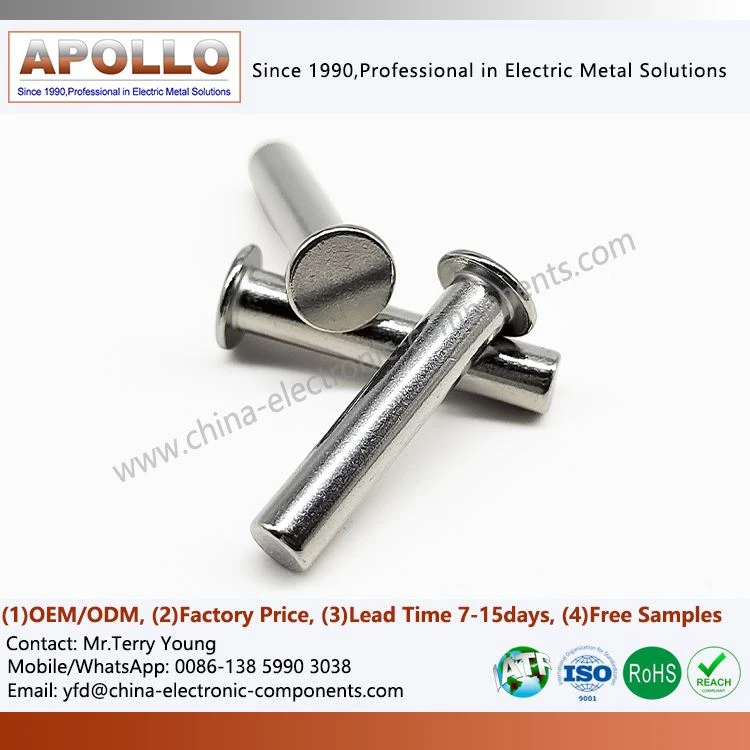

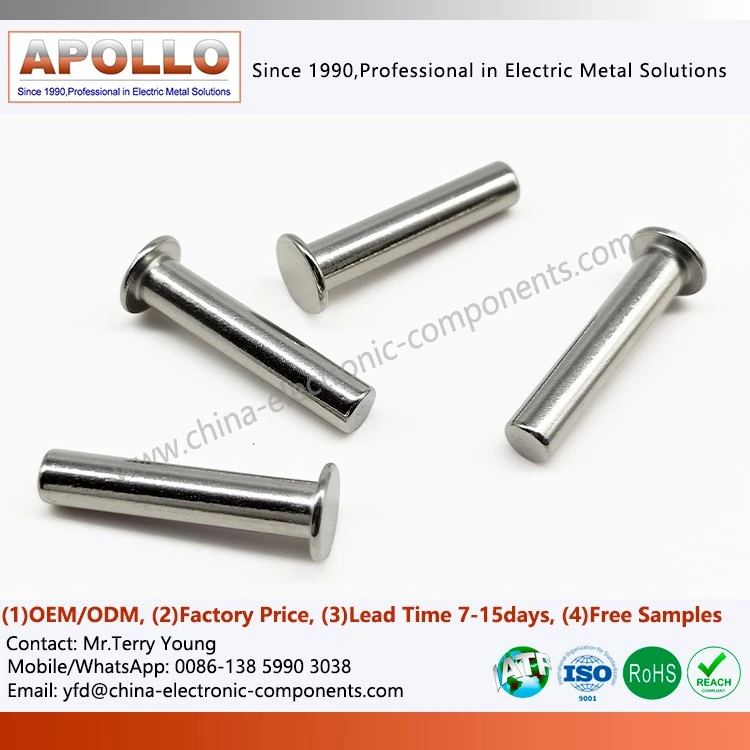

Iron Coil yog lub hauv paus hlau nplaum hlau nyob rau hauv tus ncej ntawm ntau yam relays. Nws lub luag haujlwm tseem ceeb yog txhawm rau txhawm rau nrawm nrawm thaum lub tshuab hluav taws xob electromagnetic yog lub zog, tsav tsheb cov neeg sib txuas kom ua haujlwm; thiab kom demagnetize sai sai tom qab lub zog yog de-energized, kom ntseeg tau qhov tseeb relay reset.
Nws yog sib xws nrog ntau hom relays, xws li Hlau Core rau Industrial Control Relays thiab electromagnetic relays, thiab yog ib feem tseem ceeb rau kev txhim kho relay teb ceev thiab stability.
Ntsiab Muag Cov Ntsiab Lus thiab Cov Nta
High Magnetic Permeability
Siv DT4C Iron Core (cov khoom siv hluav taws xob ntshiab hlau DT4C), nrog qhov pib permeability Ntau dua lossis sib npaug li 3000mH / m thiab qhov siab tshaj plaws permeability Ntau dua lossis sib npaug rau 15000mH / m. Sib nqus teb teb ceev yog 40% sai dua li cov hlau zoo tib yam.

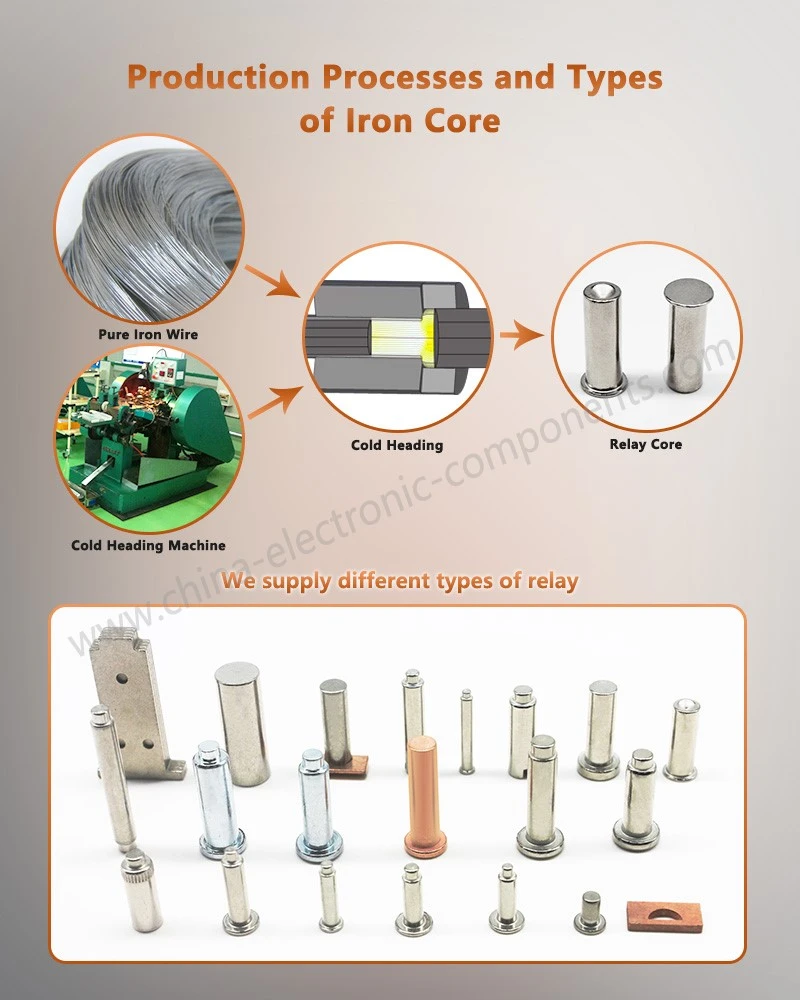

Txias Forging Precision forming
Tsim los siv DT4C Relay Iron Core txias forging tshuab, nto roughness tsawg dua los yog sib npaug rau Ra0.8μm, coaxiality kam rau ua Tsawg dua los yog sib npaug rau ± 0.02mm, tsis muaj kev ntxhov siab, ua rau muaj kev ruaj khov dua magnetic permeability.
Tsawg Remanence
Raws li cov hlau nplaum hlau nplaum rau cov relays, remanence siv tsawg dua los yog sib npaug li 80A / m, tsis muaj qhov seem hlau nplaum tom qab fais fab tuag, tiv thaiv relay tiv thaiv adhesion.
Environmental Stability
Nto passivated, tsis muaj xeb tom qab Ntau dua lossis sib npaug li 48 teev ntawm kev ntsuas ntsev tsuag, haum rau kev lag luam siab thiab qis kub ib puag ncig (-40℃~ 125 degree).
Manufacturing txheej txheem nta
Kev siv cov khoom siv siab:Kwv yees li 95%, txo qis cov khoom pov tseg.
Nruam fiber ntau qauv:Hlau ntws cov kab txuas txuas txuas ntxiv raws li Relay Steel Core cov duab, txhim kho cov neeg kho tshuab lub zog thiab qaug zog ua haujlwm.
Zoo heev nto zoo:Nto tiav ntawm Core rau Electromagnetic Relay tuaj yeem ncav cuag Ra0.4-0.8, txo qhov xav tau rau kev plating tom ntej thiab txhim kho corrosion kuj.
Zoo heev batch sib xws:Haum rau siab - ntim, siab - cov kev xav tau ntau lawm.
Qhov zoo dua piv rau cov neeg sib tw
| Sib piv Dimensions | Txias Forged DT4C | Tig |
| Magnetic Property Consistency | Excellent, dense material, uniform grains. | Nruab nrab, cuam tshuam zoo heev los ntawm kev hloov kev ntxhov siab. |
| Dimensional raug thiab tshwm sim | Zoo heev, duHlau Coilnto. | Zoo, tig cov cim tam sim no. |
| Mechanical Strength | Siab, tsis zoo hlau ntws kab, khoov tsis kam. | Tsawg, fibers raug txiav. |
| Kev Ua Tau Zoo thiab Tus Nqi | Siab, Txias Forging Relay Core haum rau siab - ntim ntau lawm, tus nqi qis tag nrho | Tsawg, cov khoom siv tseem ceeb pov tseg, cov nqi ua haujlwm siab. |
| Environmental Protection thiab Sustainability | Zoo heev, kev siv cov khoom siv siab, kev siv hluav taws xob tsawg. | Hmoov tsis zoo, tsim cov khoom siv hlau ntau ntau. |
